LiFePO4 Batteries for Reliable Solar CCTV in NZ

A LiFePO4 battery for solar CCTV should be selected around the site’s real 24-hour energy demand, the number of low-sun days the system must ride through, and the energy available to recharge it. Battery amp-hours alone are not enough: camera power draw, PoE switching, wireless links, infrared lighting, recording equipment and seasonal solar conditions all affect the result.

For New Zealand installations, robust autonomy planning is especially important. Winter daylight, persistent cloud, panel shading, coastal exposure and cold inland mornings can all reduce the margin available to an off-grid surveillance system. A properly sized LiFePO4 solar battery can support dependable operation, but it cannot compensate for an undersized solar array, an unmeasured load or unsuitable charging settings.

Why battery chemistry matters

The battery is the energy reserve that keeps a solar CCTV system operating after sunset and through periods when solar production is low. Its chemistry affects charging behaviour, voltage characteristics, protective functions and the practical energy that can be used in a remote installation.

LiFePO4, short for lithium iron phosphate, is commonly considered for outdoor solar CCTV because it is a lithium battery chemistry designed for stationary energy-storage applications. Compared with a traditional lead-acid battery, a LiFePO4 battery can provide a more consistent operating voltage through much of its discharge range and generally avoids the need for the routine electrolyte-related maintenance associated with flooded lead-acid batteries.

That does not mean every LiFePO4 battery is automatically suitable for every CCTV cabinet. A system designer still needs to confirm:

The battery’s nominal voltage matches the power system architecture.
The charge controller supports the required LiFePO4 charging profile.
Battery protection settings work with the solar controller, DC loads and any DC-to-AC conversion equipment.
The battery can supply the expected continuous load and short-duration startup or switching demand.
The enclosure provides suitable weather protection, ventilation where required and secure cable routing.
Low- and high-temperature protection is appropriate for the site.

For solar-powered surveillance, chemistry is a system decision rather than a standalone purchase decision. The camera, network equipment, solar controller, battery and monitoring method need to operate as one coordinated power system.

Stable operation matters more than a headline capacity

A CCTV camera may have a modest daytime draw but consume more energy overnight when infrared illumination activates. A PTZ camera can also draw substantially more power while moving, heating or operating auxiliary functions. Add a PoE switch, point-to-point wireless bridge, router, recorder or edge-processing device, and the total load can be considerably higher than the camera datasheet suggests.

A LiFePO4 battery should therefore be assessed against the complete DC energy budget, not only the camera’s stated maximum power. This helps avoid a common outcome: a system that looks adequate on paper but reaches low-voltage protection before dawn during winter or extended poor weather.

Capacity versus usable energy

Battery capacity is often stated in amp-hours (Ah), while energy is stated in watt-hours (Wh). For solar CCTV design, watt-hours are normally the more useful starting point because equipment consumes power in watts over time.

The relationship is:

Nominal battery energy (Wh) = battery voltage (V) × battery capacity (Ah)

For example, a 12.8V 60Ah battery has nominal stored energy of:

12.8V × 60Ah = 768Wh

However, nominal energy is not the same as energy that should be assumed available to the CCTV load under every condition. Practical usable energy may be lower due to:

A reserve maintained to avoid deep discharge or repeated protection cut-outs.
Power consumed by a PoE switch, DC converter, inverter or charging controller.
Conversion losses where equipment operates at a different voltage.
Battery temperature and protection behaviour.
Cable voltage drop, particularly on long low-voltage DC runs.
The possibility that the battery begins the night less than fully charged after a cloudy day.

For this reason, use an allowed depth of discharge or design reserve when sizing. The appropriate reserve depends on the battery management settings, project reliability target and expected solar conditions. It should be confirmed from the selected battery and controller documentation rather than assumed.

Start with a 24-hour load calculation

Calculate daily energy consumption by multiplying each device’s average power by its operating hours.

Daily load (Wh/day) = average power (W) × operating time (hours/day)

For devices that operate continuously, the calculation is:

Daily load (Wh/day) = average total load (W) × 24

As an illustrative example only, a continuous average load of 18W requires:

18W × 24 hours = 432Wh per day

That number must then be adjusted for system losses and the required reserve. It is not valid to conclude that a 432Wh nominal battery will run this load for a full day; the system needs additional margin and must recharge from solar energy.

A useful load schedule records each item separately:

Equipment	Power to use in planning	Hours per day	Daily energy
Fixed camera	Measured or specified average, including night mode	24	Power × 24
PTZ camera	Average draw plus expected movement periods	24	Power × 24
PoE switch	Switch self-consumption plus delivered PoE load	24	Power × 24
Wireless bridge or router	Measured or specified average	24	Power × 24
Recorder or edge device	Typical operating draw, not just adaptor rating	24	Power × 24
Auxiliary equipment	Sensors, heaters, lighting or access equipment	As used	Power × hours

Use measured power at the intended supply voltage where possible. Nameplate adaptor ratings are often maximum ratings and can be misleading in either direction.

Include voltage conversion and cable losses

Many solar CCTV systems use a 12.8V battery but power devices through 48V PoE, regulated 24V DC, 12V DC or AC equipment. Every conversion stage consumes some energy. Long cable runs can add voltage drop and waste energy as heat.

Keep low-voltage battery cables sized and routed correctly, and include the expected efficiency of DC-DC converters, PoE equipment or inverters in the energy budget. If AC equipment is not essential, a DC-based architecture may simplify the design and reduce conversion stages, but compatibility must be checked device by device.

Autonomy and recharge planning

Autonomy is the period a system can continue operating without enough solar input to meet its load. For a 24/7 CCTV site, autonomy should be based on the project’s acceptable risk during poor weather, not just one average night.

A simple planning expression is:

Required usable battery energy = daily system energy × days of autonomy

Then increase the result to allow for a design reserve, conversion losses and the battery’s permitted usable portion.

If a site uses 500Wh per day and must ride through two low-generation days, the starting point is 1,000Wh of usable energy before accounting for those additional factors. Whether a particular nominal battery capacity is sufficient depends on the permitted discharge range, battery temperature, system losses and charge recovery plan.

Design for the difficult period, not the sunny demonstration day

Solar CCTV designs can appear successful in summer and fail when daylight is shorter and weather is less favourable. In New Zealand, assess the site using the least favourable operating period for its region and application, rather than annual-average solar assumptions.

Key considerations include:

Winter solar resource: Reduced daylight and lower sun angles affect energy harvest.
Local weather patterns: Prolonged overcast periods can be more important than average daily irradiance.
Panel orientation and tilt: These influence seasonal generation and self-cleaning performance.
Shading: Trees, poles, buildings and seasonal vegetation can sharply reduce solar output.
Soiling: Salt spray, dust, bird droppings and pollen can reduce panel production.
Night-time load: Infrared cameras and security lighting can increase consumption precisely when the battery is carrying the site.
Recovery time: The solar array must cover the daytime load and put enough energy back into the battery after a low-sun period.

A design should not only survive a cloudy interval; it should also recover without repeatedly leaving the battery at a low state of charge. Repeatedly operating near protection thresholds can reduce surveillance availability even if the system nominally remains powered.

Match charging capability to the battery and site

The solar charge controller must be compatible with the LiFePO4 battery’s required voltage and protection behaviour. An MPPT controller can help extract available power from a solar panel as irradiance and temperature change, but it does not create energy that is not available from the array.

Confirm the controller’s:

Battery chemistry setting or configurable charge-voltage settings.
Maximum solar input and charging current.
Temperature-compensation approach, if applicable to the selected battery.
Low-voltage disconnect and reconnect settings for the load.
Ability to report battery voltage, charge state or alarms.
Compatibility with the battery management system’s protection actions.

Importantly, a controller’s maximum current rating should not be treated as the actual charge current available at the site. Real charging depends on panel output, weather, panel orientation, wiring, controller operation, simultaneous daytime load and battery state of charge.

Temperature protection and monitoring

Temperature affects both charging and discharging behaviour. Battery protection is particularly important in outdoor CCTV installations because the battery may be inside a pole-mounted cabinet, roadside enclosure, farm gate housing or exposed coastal site where ambient conditions vary widely.

LiFePO4 batteries should not be charged outside the temperature range specified by their manufacturer. Charging at unsuitable temperatures can trigger battery protection or cause battery damage. Cold conditions can be a particular concern for exposed South Island, central plateau and alpine-adjacent locations, while direct sun in a sealed dark enclosure can create high internal temperatures even on a mild day.

Plan for the enclosure, not just the weather forecast

The battery experiences the temperature inside the cabinet, which may differ significantly from the ambient air temperature. Review:

Direct solar gain on the enclosure.
Cabinet colour, material and mounting location.
Airflow and heat produced by PoE switches, radios and power converters.
Rain, wind-driven moisture, condensation and salt exposure.
Battery location relative to heat-generating electronics.
Protection against unauthorised access and accidental cable damage.

Do not defeat a battery management system or bypass protective disconnect functions to keep a site running. If low-temperature charging protection regularly stops charging, the solution is to revisit enclosure design, battery placement, thermal management and solar-energy margin.

Monitoring turns a remote battery into a manageable asset

A solar CCTV system is easier to maintain when installers or operators can identify declining energy before the cameras go offline. The useful monitoring points depend on the equipment, but may include:

Battery voltage and reported state of charge.
Solar charging current or daily solar yield.
Load current and total load energy.
Low-voltage disconnect and reconnect events.
Controller, battery or cabinet temperature.
PoE port status and network reachability.
Communication loss from the remote site.

Voltage alone is not a complete measure of stored energy, particularly while charging or supplying a changing load. Use it as one indicator alongside controller data, load trends and alarm history.

Set alerts that give enough notice to investigate shading, a dirty panel, increased night load, failed equipment or a charging issue. A “camera offline” notification is useful, but a low-energy warning is usually more actionable because it arrives earlier.

Compare approved LiFePO4 capacities

The following Maxsol solar-system product references provide verified 12.8V LiFePO4 battery capacities. They are comparison starting points only; no capacity can be assigned a universal camera count or runtime without the actual system load, solar resource and autonomy target.

System reference	Battery specification	Nominal battery energy	Practical evaluation focus
CS6030 30Ah 384Wh solar system	12.8V 30Ah LiFePO4	384Wh	Establish whether the measured 24-hour load and required reserve fit within the available usable energy.
CS8040 45Ah 576Wh solar system	12.8V 45Ah LiFePO4	576Wh	Compare against overnight load, poor-weather autonomy and the required daytime recharge energy.

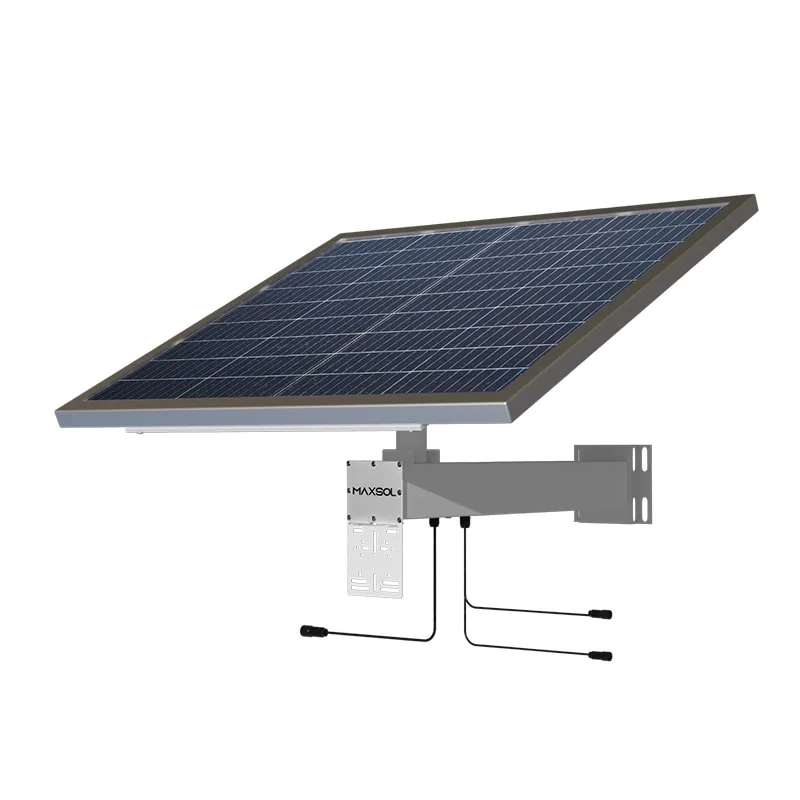

CS12060 60Ah 768Wh solar system	12.8V 60Ah LiFePO4	768Wh	Assess for sites needing a larger energy reserve, while confirming array and charging capability.
CS200100 100Ah 1280Wh solar system	12.8V 100Ah LiFePO4	1280Wh	Consider where daily energy use or autonomy requirements justify greater nominal stored energy.

The nominal Wh figures make capacity comparison straightforward: 576Wh stores more nominal energy than 384Wh, and 1,280Wh more than 768Wh. The right choice, however, depends on whether the system can recharge that stored energy under expected operating conditions.

A larger battery can provide more reserve, but it can also take longer to recharge after a low-energy period if solar input is limited. Increasing battery capacity without reviewing solar generation may delay low-voltage shutdown but leave the system unable to recover fully between poor-weather events.

Avoid sizing from camera quantity alone

“Number of cameras” is a poor sizing shortcut. One fixed camera with low-power network equipment may use less energy than a single PTZ camera with active infrared, heating and a high-power wireless link. Similarly, two cameras may be fed from a switch whose own power use and PoE conversion losses materially affect the total.

Instead, calculate:

The measured or specified average power of every device.
The expected higher night-time load.
Daily Wh consumption, including conversion losses.
Required usable battery energy for the selected autonomy period.
Solar energy needed to operate the daytime load and restore the battery.
The effect of seasonal shading, temperature and panel cleanliness.

Questions to verify with the system designer

Before choosing a LiFePO4 battery for solar CCTV, ask for clear answers to these practical questions.

What is the measured 24-hour load?

Request a load schedule in watts and watt-hours, including camera night mode, PoE delivery, networking, recording, lighting and any intermittent equipment. Ask whether the figure is based on measurements, manufacturer data or a conservative allowance.

How many low-solar days must the site withstand?

Define the autonomy target for the location and security criticality. A remote access gate, construction site or critical perimeter may require a different reserve from a low-risk monitoring point.

What usable battery energy is assumed?

Ask what discharge limit, reserve and conversion efficiency have been included. A proposal that only compares daily Wh with nominal battery Wh may not have adequate operating margin.

Can the solar array recharge the battery after poor weather?

Request the recharge assumptions, including the seasonal solar basis, panel orientation, shading analysis and daytime load. A battery that is large enough for overnight use may still be unsuitable if it cannot recover.

Are charging and protection settings compatible?

Confirm the battery voltage, charge controller profile, low-voltage disconnect settings and DC output arrangement. Also verify the expected behaviour if battery protection disconnects charging or load supply.

What temperatures will the battery experience inside the enclosure?

Review both winter charging conditions and summer internal cabinet temperatures. Ask how battery temperature, heat from electronics, direct sun and ventilation have been considered.

How will the site be monitored and maintained?

Identify which energy and network signals are available remotely, who receives alarms and how panel cleaning, vegetation control and cabinet inspection will be handled.

Does the network design account for voltage drop and PoE demand?

Confirm cable lengths, conductor sizing, PoE power budget, DC conversion requirements and surge-protection arrangement. These details can affect both energy use and camera stability.

Common solar CCTV battery-sizing mistakes

Several avoidable mistakes can shorten autonomy or create difficult-to-diagnose outages:

Selecting battery Ah without converting the whole load into daily Wh.
Using a camera’s daytime power figure while ignoring infrared or PTZ activity.
Forgetting PoE switch, radio, router and converter consumption.
Assuming all nominal battery energy is available to the equipment.
Treating average annual sunlight as a winter design figure.
Adding battery capacity but not checking recharge capability.
Ignoring new shading from vegetation growth or nearby construction.
Locating the battery in an enclosure that becomes too hot or too cold.
Monitoring only camera connectivity rather than energy trends.
Installing a controller or DC converter without confirming LiFePO4 settings and voltage compatibility.

The practical goal is not simply to install the biggest battery. It is to create a balanced system where the battery reserve, solar input, charging controls, load profile and monitoring approach suit the site’s operating conditions.

For the next step, compare the linked Maxsol models against your port count, measured load, cable distance, solar exposure, enclosure environment and required management visibility before finalising a solar CCTV design.
