Model: CPE295

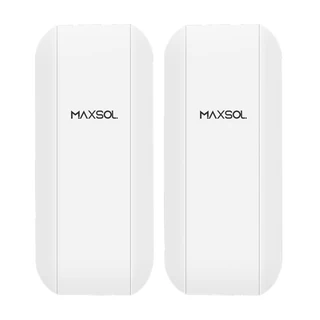

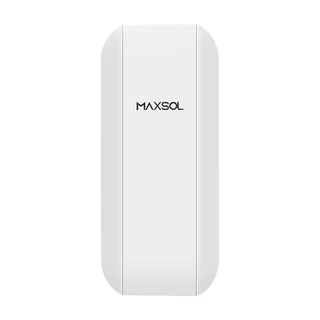

5.8GHz 900Mbps 5km Outdoor Wireless CPE Bridge

CPE295 5.8GHz outdoor wireless bridge with a 14dBi MIMO antenna, Gigabit Ethernet and 802.3af/at PoE for line-of-sight links up to 5km.

Key features

5.8G 900M 5KM Wireless CPE
Built-in 2×2 dual-polarized directional MIMO 14dBi antenna
Support Standard PoE 802.3af/at power supply and 9V–48V DC power supply
1*10/100/1000 Mbps LAN port
5.150GHz–5.850GHz Extension Channel
Transmitting power: ≤ 23dBm
Auto-connect for PTP / PTMP application

Send Inquiry By Emailsales@maxsol-tech.com

DatasheetDownload View

Specification

Model: CPE295

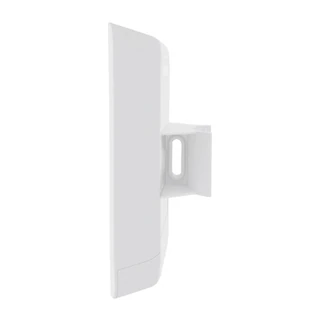

Product shape: Outdoor pole type or wall hanging
Product size: 177*80*55
Application scenarios: Tower crane, orchard, aquaculture, factory, school, community, Office cross-street video convergence wireless transmission and broadband operation transmission
Operating Frequency Range: 5.8GHz
Maximum access rate: 867Mbps
Wireless protocol standard: IEEE 802.11a/n/ac
Ethernet interface: 1×10/100/1000mbps LAN Port
TDMA agreement: The fifth generation TDMA5 agreement
Reset button: 1
LED light: 1xPOE, 1xLAN, 1x wireless pairing, 3x signal strength indicator light
Antenna gain: 14dBi dual polarized directional antenna
Antenna Angle: Horizontal Angle 30°, vertical Angle 30°
DC: 1xDC port
Full load power consumption: 6.5W
Dustproof and waterproof Level: IP64
Power supply way: Standard POE 802.3af/at power supply, 9V-48V DC power supply, 48V passive POE
Power supply distance: PoE power supply distance is 100 meters
11a 6Mbps transmitted power: 25dBm (single port, 2×2 MIMO transmitted power 28dBm)
11a 54Mbps transmitted power: 23dBm
11n MCS transmitted power: 23dBm
11ac MCS9 transmitted power: 22dBm
11a 6Mbps receiver sensitivity: -93dBm ±1.5dBm
11n MCS7 receiver sensitivity: -73dBm ±1.5dBm
11ac MCS9 receiving sensitivity: -64dBm ±1.5dBm
Working mode: AP, client, Wireless WAN, P2MP, Relay, Routing
Power on the automatic bridge: Support (Restore factory settings only)
Channel bandwidth: 10/20/30/40MHz
TDMA private contract: The fifth generation TDMA5
Transparent bridge: Support
SSID Hidden: Support
SSID quantity: 1
WEP encryption: Supports 64/128-bit encryption
WPA-PSK encryption: AES/TKIP
WPA2-PSK encryption: AES/TKIP
WPA encryption: Support
WPA2 encryption: Support
Wireless access control: Support filtering based on MAC addresses, AP isolating, Client side access restriction, RSSI threshold Settings
Channel offset: Support
WMM: Support
DHCP servicer: Support
SNMP: V1, V2C
Diagnostic tools: Supports ping, Trace route, signal scanning, and Ping watchdog
Scheduled restart: Support
Device management: Device management, Software upgrade, Device restart, Restoring factory Settings, Configuration backup & restoration, Log function, Bridge assistant management
Default login: 192.168.2.66
Default username: admin
Default password: admin01
Working temperature: -30℃ to 55℃
Working humidity: 10%-90%RH (non-condensing)
Storage temperature: -40℃ to 70℃
Storage humidity: 10%-90%RH (non-condensing)
