Model: PS1402E

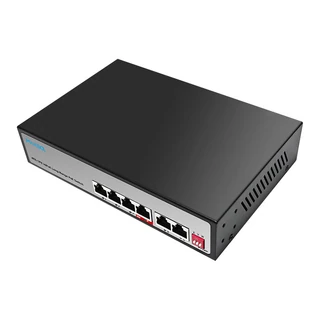

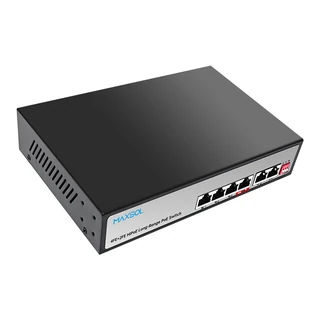

4-Port Hi-PoE Switch with VLAN and Extend Mode
4-port Hi-PoE switch with 300-meter transmission and a 65W power budget, featuring VLAN, AI Watchdog, and up to 60W output on the Hi-PoE port.
Key features
- 4FE+2FE Uplink HiPoE 300M Long Range PoE Switch
- Supports smart watchdog function to monitor compliant PD
- Port 4 supports Hi-PoE power up to 60W fit IEEE 802.3bt compliant PDs
- Port 1-3 supports PoE 30W fit IEEE 802.3af/at compliant PDs
- Support VLAN
- Internal power adapter supply 65W (included)
Specification
Interfaces
- Model
- PS1402E
- Fixed Port
- 4*10/100Base-T/TX PoE ports (Data/Power) 2*10/100Base-T/TX Uplink RJ45 ports (Data)
PoE
- PoE Port
- Ports 1–3: IEEE802.3af/at; port 4: IEEE802.3bt, up to 60W
- PoE Standard
- PoE Ports support @IEEE802.3af/at/bt
- DIP Switch 3-Mode Function
E – Extend Mode: AI Extend 300meters transmission and auto speed change of single port (limit 10Mbps), other ports maintain 100M within 100 meters;
V – VLAN Mode: Isolates each PoE port from one another while allowing communication with the uplink port, improving network security and reducing broadcast traffic.
W – Watchdog Mode: Automatically detects unresponsive IP cameras and restarts their PoE power supply to restore normal operation, minimizing downtime and maintenance costs.
- Network Protocol
- IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3x.
- Ethernet Port Feature
- 10/100Base-T(X) automatic detection, full/half Duplex MDI/MDI-X adaptive
- Forwarding Mode
- Store and Forward
Switch Property
- Switching Capacity
- 1.2Gbps
- Forwarding Rate
- 0.89Mpps
- MAC
- 2K
- Buffer Memory
- 768K
- Jumbo Frame
- 1512 byte
- Twisted Pair Transmission
- 10BASE-T:Cat5 UTP(≤300 meter) 100BASE-TX:Cat5 or later UTP(≤100 meter)
- Power Supply Pin
- AF/AT:1/2(+),3/6(-);Hi PoE:1/2(+),3/6(-),4/5(+),7/8(-)
- MAX / AVERAGE Power Per Port
- Port 1-3: 30W/15.4W; Port 4: 60W/30W/15.4W
- Power Budget
- 65W
- Power Consumption
- Standby:<2W; Full load:<65W
Physical Characteristics
- LED Indicator
- Power indicator: PWR (Green); Network indicator:1-6(Link/Act)/(Green).
- Power Supply
- Build-in power supply AC100~240V 50-60Hz.
- Operation TEMP / Humidity
- -20~+55°C:5%~90% RH non condensing
- Storage TEMP / Humidity
- -40~+75°C;5%~95% RH non condensing
- Dimension
- 195*135*40mm
- Net /Gross Weight
- <0.8kg / <1.2kg
- Installation Method
- desktop type, wall mounted
- Protection
- IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge; IEC61000-4-5(Lightning protection/Surge): Power:CM±4kV/DM±2kV; Port: ±4kV.
- Protection level
- IP30

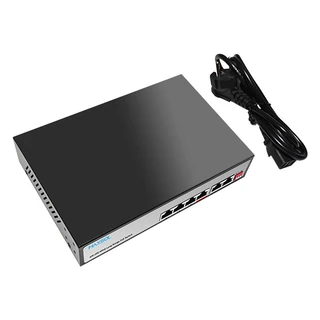

Package Contents
- Switch
- 1 pcs
- Power cord
- 1 pcs
- Quick installation guide
- 1 pcs
Interfaces
- Model
- PS1402E
- Fixed Port
- 4*10/100Base-T/TX PoE ports (Data/Power) 2*10/100Base-T/TX Uplink RJ45 ports (Data)
PoE
- PoE Port
- Ports 1–3: IEEE802.3af/at; port 4: IEEE802.3bt, up to 60W
- PoE Standard
- PoE Ports support @IEEE802.3af/at/bt
- DIP Switch 3-Mode Function
E – Extend Mode: AI Extend 300meters transmission and auto speed change of single port (limit 10Mbps), other ports maintain 100M within 100 meters;
V – VLAN Mode: Isolates each PoE port from one another while allowing communication with the uplink port, improving network security and reducing broadcast traffic.
W – Watchdog Mode: Automatically detects unresponsive IP cameras and restarts their PoE power supply to restore normal operation, minimizing downtime and maintenance costs.
- Network Protocol
- IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3x.
- Ethernet Port Feature
- 10/100Base-T(X) automatic detection, full/half Duplex MDI/MDI-X adaptive
- Forwarding Mode
- Store and Forward
Switch Property
- Switching Capacity
- 1.2Gbps
- Forwarding Rate
- 0.89Mpps
- MAC
- 2K
- Buffer Memory
- 768K
- Jumbo Frame
- 1512 byte
- Twisted Pair Transmission
- 10BASE-T:Cat5 UTP(≤300 meter) 100BASE-TX:Cat5 or later UTP(≤100 meter)
- Power Supply Pin
- AF/AT:1/2(+),3/6(-);Hi PoE:1/2(+),3/6(-),4/5(+),7/8(-)
- MAX / AVERAGE Power Per Port
- Port 1-3: 30W/15.4W; Port 4: 60W/30W/15.4W
- Power Budget
- 65W
- Power Consumption
- Standby:<2W; Full load:<65W
Physical Characteristics
- LED Indicator
- Power indicator: PWR (Green); Network indicator:1-6(Link/Act)/(Green).
- Power Supply
- Build-in power supply AC100~240V 50-60Hz.
- Operation TEMP / Humidity
- -20~+55°C:5%~90% RH non condensing
- Storage TEMP / Humidity
- -40~+75°C;5%~95% RH non condensing
- Dimension
- 195*135*40mm
- Net /Gross Weight
- <0.8kg / <1.2kg
- Installation Method
- desktop type, wall mounted
- Protection
- IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge; IEC61000-4-5(Lightning protection/Surge): Power:CM±4kV/DM±2kV; Port: ±4kV.
- Protection level
- IP30
Package Contents
- Switch
- 1 pcs
- Power cord
- 1 pcs
- Quick installation guide
- 1 pcs
