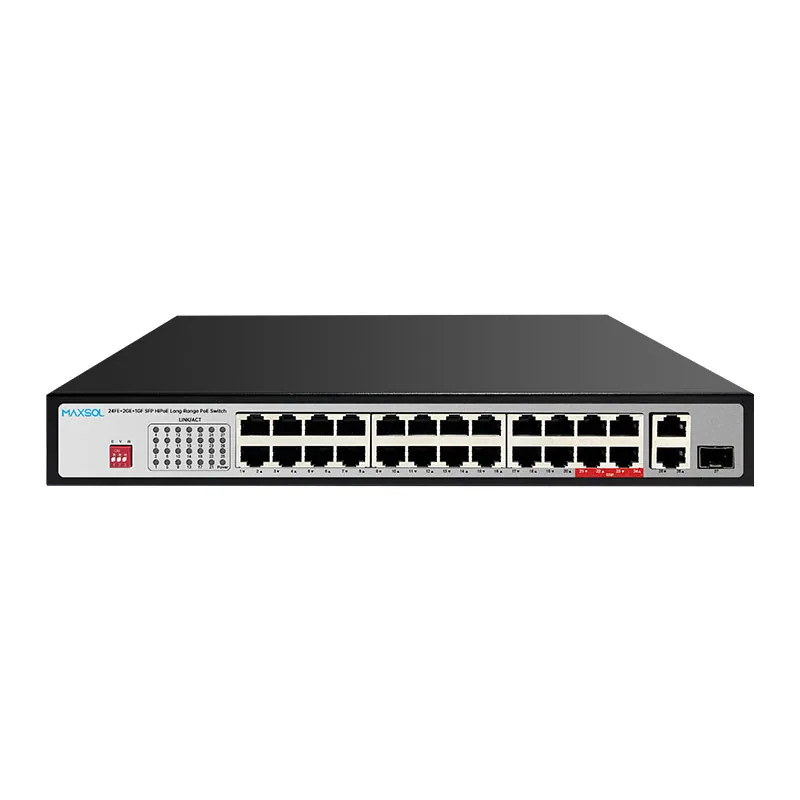

24-Port Hi-PoE Switch with Gigabit and SFP Uplinks
Model: PS12402FE
Model: PS1402E-L

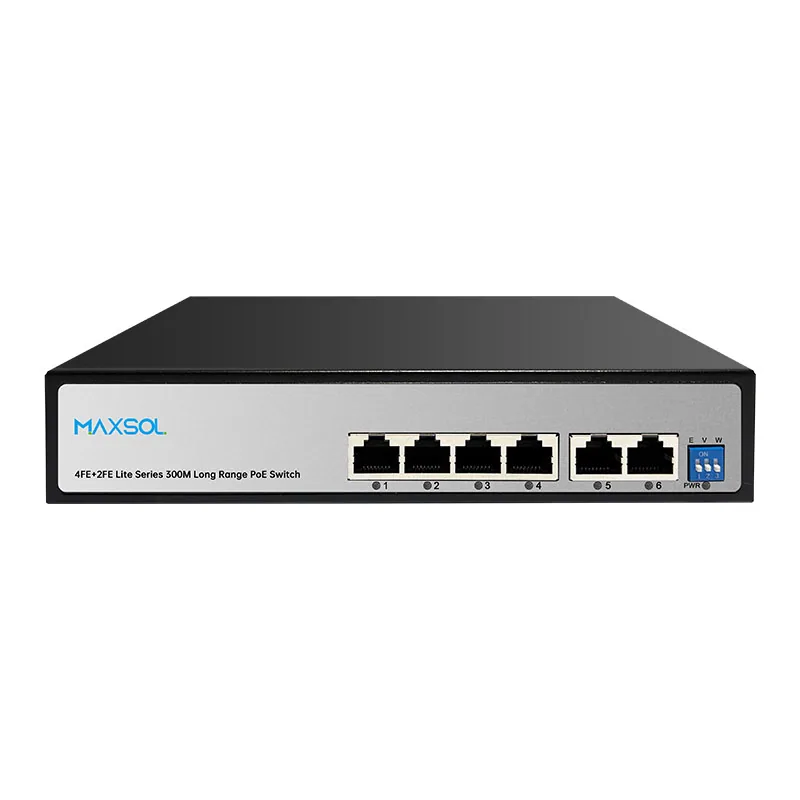

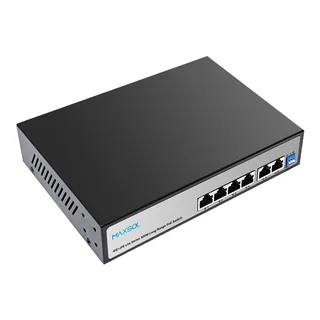

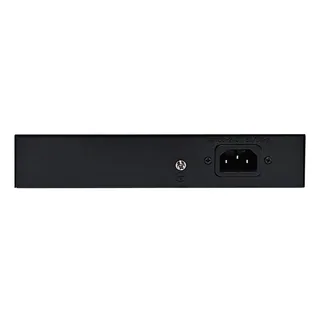

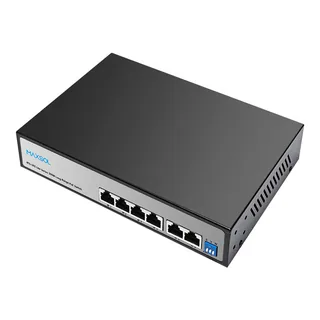

4-Port Long Range AI PoE Switch 60W 2 Uplink
Industrial 4-Port PoE switch featuring AI Watchdog and 300m extension. Rugged 6KV surge protection and VLAN support. Ideal for surveillance integrators.
Key features
- 4FE+2FE Uplink Lite Series 300M Long Range PoE Switch
- IEEE 802.3af/at compliant, up to 30 W per PoE port
- Internal power adapter supply 60W
- Support DIP switch to VLAN / Extend 300M / Watchdog
- Support AI network self-healing (watchdog) function
- Support 10/100Mbps auto-negotiate
- Support desktop and wall-mounted installation
- 6KV surge protection function
Specification
Interfaces
- Model
- PS1402E-L
- Fixed Port
- 4*10/100Base-T/TX PoE ports (Data/Power) 2*10/100Base-T/TX Uplink RJ45 ports (Data)
PoE
- PoE Port
- Port 1-4 support PoE
- DIP Switch 3-Mode Function
E – Extend Mode: Extends PoE transmission distance up to 300 m while maintaining stable data and power transmission.
V – VLAN Mode: Isolates each PoE port from one another while allowing communication with the uplink port, improving network security and reducing broadcast traffic.
W – Watchdog Mode: Automatically detects unresponsive IP cameras and restarts their PoE power supply to restore normal operation, minimizing downtime and maintenance costs.
- Network Protocol
- IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3x.
- Ethernet Port Feature
- 10/100Base-T(X) automatic detection, full/half Duplex MDI/MDI-X adaptive
- Forwarding Mode
- Store and Forward
Switch Property
- Switching Capacity
- 1.2Gbps
- Forwarding Rate
- 0.89Mpps
- MAC
- 2K
- Buffer Memory
- 768K
- Twisted Pair Transmission
- 10BASE-T:Cat5 UTP(≤300 meter) 100BASE-TX:Cat5 or later UTP(≤100 meter)
- Power Supply Pin
- Default 1/2(+), 3/6(-);
- MAX / AVERAGE Power Per Port
- 30W/15.4W
- Total Power
- 60W
- Power Consumption
- Standby:<3W; Full load:<60W
Physical Characteristics
- LED Indicator
- Power indicator: PWR (Green) Network indicator: 1-4(Link/Act)/ (Green), 5-6(Link/Act)/ (Green)
- Power Supply

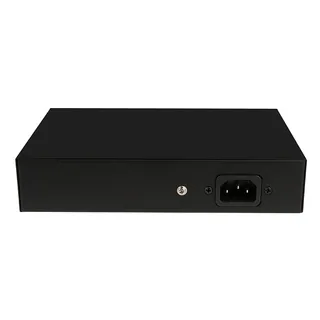

- Built-in power adaptor AC100~240V 50-60Hz,60W
- Operation TEMP / Humidity
- -20~+55°C:5%~90% RH non condensing
- Storage TEMP / Humidity
- -40~+75°C;5%~95% RH non condensing
- Dimension
- 195*135*40mm
- Net /Gross Weight
- <0.75kg / <1kg
- Installation Method
- desktop type, wall mounted
- Protection
- IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge; IEC61000-4-5(Lightning protection/Surge): Power:CM±4kV/DM±2kV; Port: ±4kV.
- Protection level
- IP30

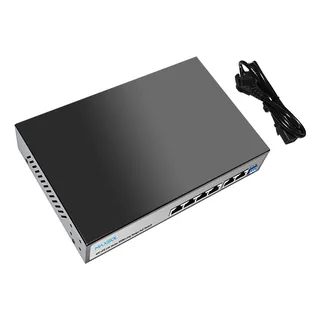

Package Contents
- Switch
- 1 pcs
- Power cord
- 1 pcs
- Quick installation guide
- 1 pcs
Interfaces
- Model
- PS1402E-L
- Fixed Port
- 4*10/100Base-T/TX PoE ports (Data/Power) 2*10/100Base-T/TX Uplink RJ45 ports (Data)
PoE
- PoE Port
- Port 1-4 support PoE
- DIP Switch 3-Mode Function
E – Extend Mode: Extends PoE transmission distance up to 300 m while maintaining stable data and power transmission.
V – VLAN Mode: Isolates each PoE port from one another while allowing communication with the uplink port, improving network security and reducing broadcast traffic.
W – Watchdog Mode: Automatically detects unresponsive IP cameras and restarts their PoE power supply to restore normal operation, minimizing downtime and maintenance costs.
- Network Protocol
- IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3x.
- Ethernet Port Feature
- 10/100Base-T(X) automatic detection, full/half Duplex MDI/MDI-X adaptive
- Forwarding Mode
- Store and Forward
Switch Property
- Switching Capacity
- 1.2Gbps
- Forwarding Rate
- 0.89Mpps
- MAC
- 2K
- Buffer Memory
- 768K
- Twisted Pair Transmission
- 10BASE-T:Cat5 UTP(≤300 meter) 100BASE-TX:Cat5 or later UTP(≤100 meter)
- Power Supply Pin
- Default 1/2(+), 3/6(-);
- MAX / AVERAGE Power Per Port
- 30W/15.4W
- Total Power
- 60W
- Power Consumption
- Standby:<3W; Full load:<60W
Physical Characteristics
- LED Indicator
- Power indicator: PWR (Green) Network indicator: 1-4(Link/Act)/ (Green), 5-6(Link/Act)/ (Green)
- Power Supply
- Built-in power adaptor AC100~240V 50-60Hz,60W
- Operation TEMP / Humidity
- -20~+55°C:5%~90% RH non condensing
- Storage TEMP / Humidity
- -40~+75°C;5%~95% RH non condensing
- Dimension
- 195*135*40mm
- Net /Gross Weight
- <0.75kg / <1kg
- Installation Method
- desktop type, wall mounted
- Protection
- IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge; IEC61000-4-5(Lightning protection/Surge): Power:CM±4kV/DM±2kV; Port: ±4kV.
- Protection level
- IP30
Package Contents
- Switch
- 1 pcs
- Power cord
- 1 pcs
- Quick installation guide
- 1 pcs
Recommended Products
More from 100Mbps Commercial PoE Switch
Compare related Maxsol products for your next outdoor power or networking project.

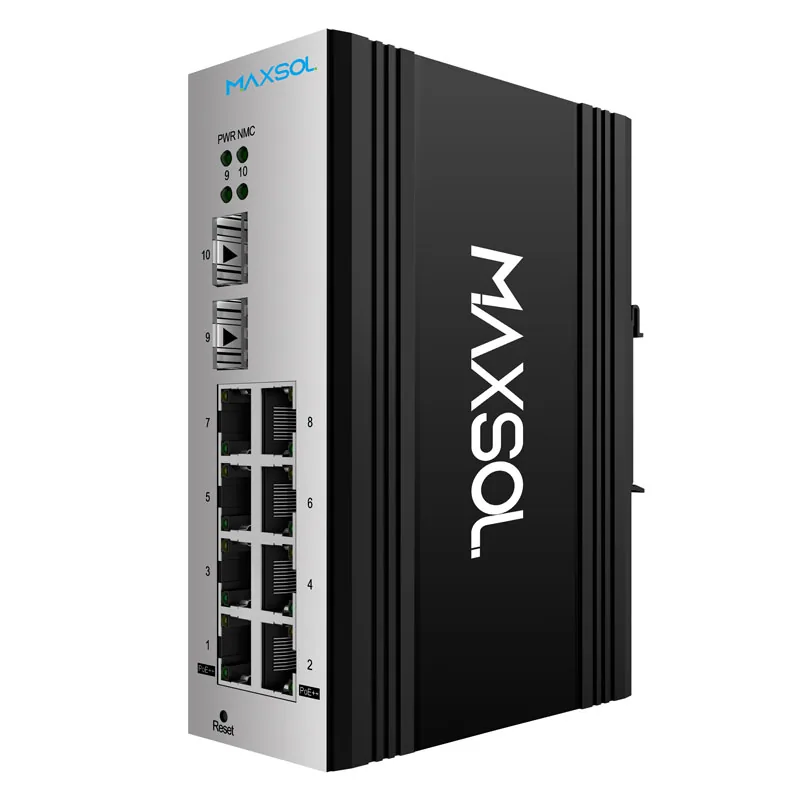

8-Port Managed Industrial Gigabit PoE++ Switch
Model: PS2802SFG-I-BT

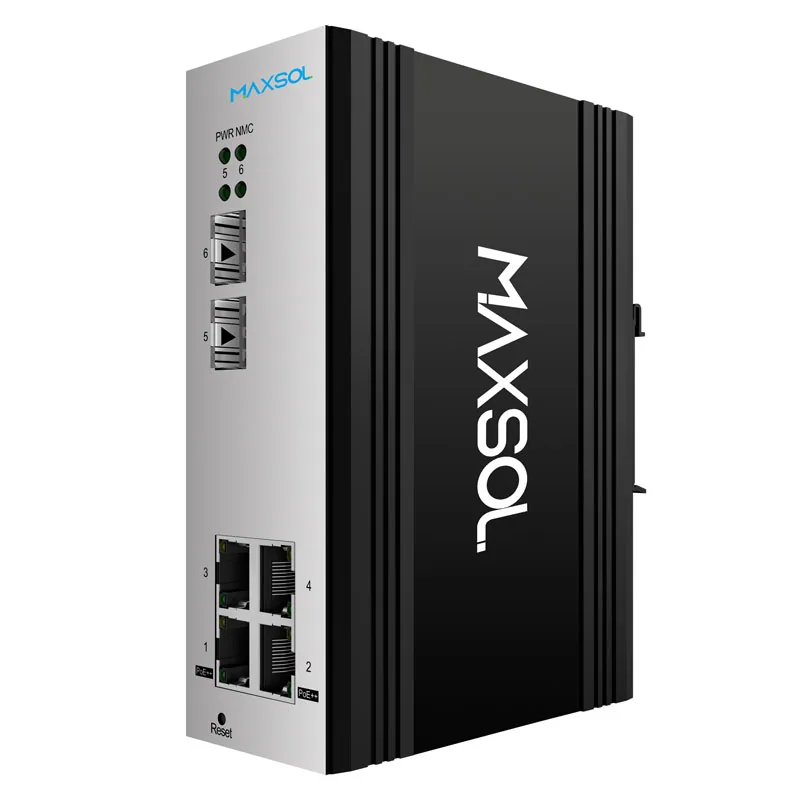

4-Port Managed Gigabit PoE++ Industrial Switch
Model: PS2402SFG-I-BT

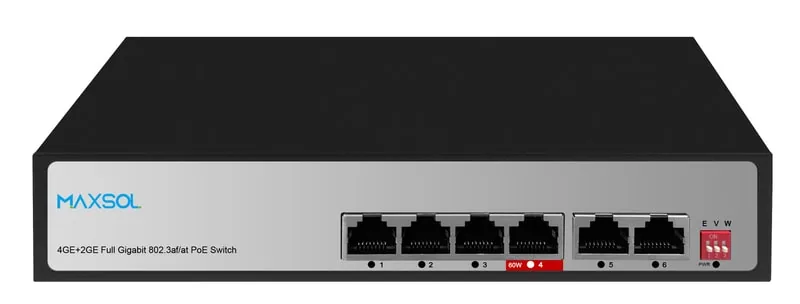

4-Port Long-Range Gigabit Unmanaged PoE Switch, 65W
