Solar PoE vs Grid Power for NZ Remote Sites

Solar PoE is usually the better choice when a remote site has no practical grid connection, the network load is predictable, and the solar array and battery can be sized for winter conditions. Grid-fed outdoor PoE is generally simpler when a suitable mains supply is already nearby, particularly for larger or changing loads. A hybrid design may be justified where service continuity matters enough to warrant two independent energy sources.

There is no universal winner when comparing solar PoE vs traditional power for remote sites. The correct architecture depends on the same measured load, required uptime, distance to power and communications, site access, environmental exposure, recovery plan and whole-of-life cost.

Decision factor	Solar PoE	Grid-fed outdoor PoE
Primary energy source	Solar array and battery storage	Mains supply, optionally with UPS backup
Best fit	Sites without a practical power connection	Sites with an accessible, suitable power feed
Main design constraint	Winter energy balance and battery autonomy	Power-route cost, outage exposure and backup duration
Civil work	Array foundation or mounting, local equipment installation	Trenching, cabling, switchboard work or other power-route construction
Long-distance networking	Often paired with fibre or wireless backhaul	Can use copper locally and fibre for longer links
Routine maintenance	Panels, battery, connections and enclosure	Supply, surge protection, UPS battery and cabling
Expansion	Limited by array, battery, controller and PoE headroom	Limited by supply, UPS, switch and PoE headroom
Recovery dependency	Weather, stored energy, spares and site access	Mains restoration, UPS duration, spares and site access

Define the same remote-site load and service objective

Compare both architectures against one load schedule and one service target. Otherwise, a lightly loaded solar design can appear favourable beside a grid design sized for higher demand or longer backup.

Start by documenting every powered component:

Cameras, access points, radios and CPE devices
PoE switch consumption
Fibre equipment or media conversion
Environmental controls, heaters or fans
Sensors, lighting and auxiliary loads
Battery and power-conversion losses
Planned spare ports and future devices

Record both average and peak demand. A camera may draw more power when infrared illumination, a heater or another feature is active. A wireless radio may also have a different peak from its normal operating load. Use manufacturer-documented maximum inputs where peak operation must be supported.

For a continuously operating site:

Daily load energy in watt-hours = average system watts × 24 hours

That result is only the starting point for solar sizing. The final design must account for charging and conversion losses, usable battery capacity, temperature, battery ageing, seasonal solar conditions and the required reserve after poor weather.

For grid-fed PoE, calculate the normal load in the same way, then define the UPS objective separately. “Has a UPS” is not an uptime requirement. Specify whether the system must bridge a short interruption, continue through a longer outage, or remain operational until a technician can reach the site.

The service objective should answer:

Which devices must remain online?
How long may the site be unavailable?
How much stored energy is required?
What happens after the battery reaches its low-voltage threshold?
How will operators know that the site is running on reserve power?
How quickly can the site be reached after a fault?

New Zealand sites may face short winter solar windows, exposed terrain, coastal conditions and long travel times. These factors do not automatically favour one architecture, but they increase the value of conservative energy sizing, suitable environmental protection and useful remote telemetry.

Compare energy conversion and PoE distribution

A solar PoE system typically converts sunlight into stored DC energy and then distributes that energy to network devices through PoE. A basic energy path is:

PV array → charge control → battery → managed PoE switch → powered devices

Keeping more of the system on DC can avoid an unnecessary DC-to-AC-to-DC conversion stage. However, this does not make every DC design efficient by default. Cable losses, charging limits, switch consumption and voltage compatibility still need to be checked.

The Maxsol IOT2802SFG-S managed solar industrial PoE switch illustrates an integrated solar-oriented architecture. Its documented features include eight Gigabit PoE ports, two SFP ports, a 120 W PoE budget, 90 W BT support, PV and battery monitoring, and PV and battery input at DC22–29.2V. Ports 3–4 can be configured for 24 V or 48 V PoE.

Those details do not replace a system design. Confirm the actual port allocation, the power required by each connected device, charging limits, battery compatibility and whether passive or standards-based PoE is required. Incorrect voltage selection can damage equipment, particularly where configurable 24 V and 48 V outputs are involved.

A conventional outdoor PoE architecture has a different conversion path:

AC supply → power supply or UPS → PoE switch → powered devices

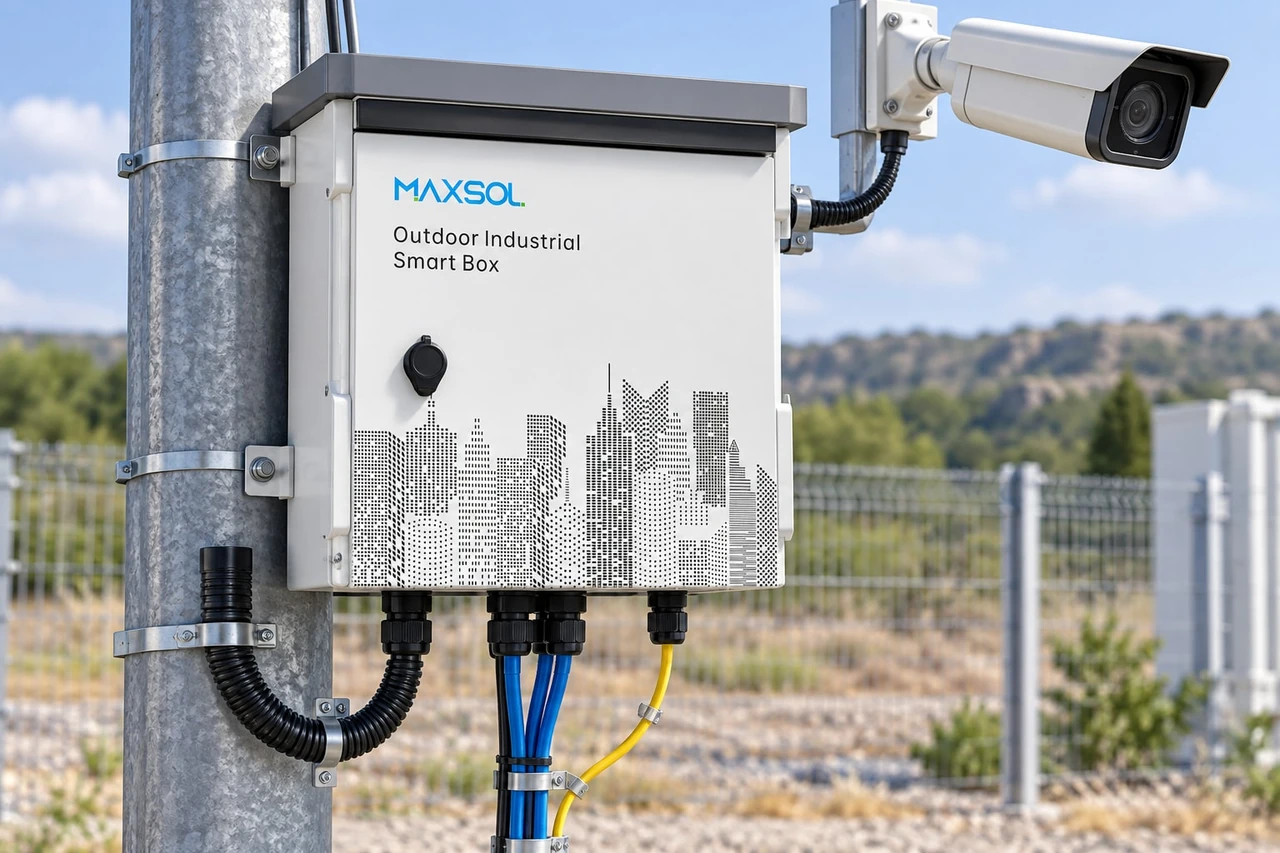

The Maxsol SBOX2802SFG-I managed industrial smart Ethernet box is an example of this approach. It is IP65 and combines eight Gigabit PoE ports, two Gigabit SFP slots, Layer 2 management, AC100–240V input and a built-in 240 W DC55V UPS module.

Do not treat the 240 W UPS-module rating as a statement of backup duration or usable PoE output. Actual runtime depends on the battery arrangement, connected load, conversion losses, operating conditions and system configuration. Confirm how battery storage is supplied, connected, monitored and maintained.

These two Maxsol products represent different architectures; they are not a tested equivalent pair. Solar autonomy, UPS runtime, installation cost and lifecycle cost cannot be concluded from their headline features alone.

For a fuller explanation of the DC architecture, see the guide to solar-powered PoE for off-grid networking.

Evaluate installation distance and civil work

Distance is often the factor that changes the commercial result.

If a suitable power source is already beside the proposed equipment location, grid-fed outdoor PoE may require relatively little civil work. If power must cross a road, paddock, waterway, steep slope or environmentally sensitive area, the route can become a larger part of the project than the network equipment itself.

A solar system places generation near the load. This can remove the need to extend mains power over a long distance, but it introduces other installation requirements:

A solar array with suitable orientation and limited shading
Foundations, poles or mounting structures
Battery and equipment housing
Safe cable routes between the array, battery and load
Protection against weather, moisture and physical damage
Access for inspection and component replacement

Solar does not eliminate cabling; it changes where the cabling is required.

Separate the power distance from the data distance

Standard copper Ethernet is generally designed around a maximum 100-metre channel. PoE performance within that distance also depends on cable conductor size, connection quality, temperature, device demand and the required PoE class.

For a longer backhaul, a common architecture is fibre or a point-to-point wireless bridge between the remote site and the main network, with short copper PoE runs at the remote end. Fibre does not carry electrical power, but it provides data connectivity without extending a copper Ethernet link over the entire distance.

Both example Maxsol architectures include SFP connectivity, but the correct optical modules, fibre type, connector format, distance and environmental design must be verified separately. SFP slots alone do not define a complete fibre link.

Before choosing either power approach, map:

Distance from the nearest suitable power source
Distance from the nearest network connection
Proposed copper, fibre and wireless segments
Voltage drop on every DC route
Trenching and reinstatement requirements
Access for installation machinery
Solar shading throughout the year
Flood, wind, corrosion and tampering exposure
Earthing, surge protection and lightning-risk strategy

The practical design of outdoor power, fibre and battery infrastructure is covered further in the outdoor PoE switch box, power, fibre and battery guide.

Compare monitoring, maintenance and recovery

Remote-site reliability is not simply the number of hours before a battery becomes empty. A dependable system should detect deteriorating conditions early and support a defined recovery process.

Solar PoE monitoring

Useful solar telemetry includes:

PV input voltage and charging status
Battery voltage and condition indicators
Load or PoE power status
Low-battery events
Device and port status
Communication loss
Historical energy trends, where supported

PV and battery monitoring, as documented for the IOT2802SFG-S, can help operators distinguish an energy problem from a network problem. However, confirm exactly which values and alarms are available through the intended management interface. A monitored value is only useful if it can be collected, interpreted and acted on.

Solar maintenance can include panel inspection and cleaning, vegetation control, checking mounts and cable entries, testing connections, reviewing battery condition and replacing energy-storage components when required. The appropriate interval depends on the site environment and component documentation.

Grid-fed PoE monitoring

A grid-fed system should ideally distinguish among:

Loss of incoming AC power
Operation on UPS support
Low stored-energy condition
PoE port or device failure
Switch communication failure
Enclosure or environmental problems

Layer 2 management can provide network and port controls, but it should not be assumed to expose every UPS or battery status value. Confirm whether the required power telemetry is available locally, through the network, or through separate monitoring equipment.

Grid-fed systems still require maintenance. Outdoor cable routes, protective devices, UPS batteries, seals, glands and terminations can all deteriorate. If the mains feed fails beyond the duration of the UPS, the site is no longer better protected merely because it normally uses grid power.

Plan for recovery, not just failure detection

A recovery plan should state:

Which alarms trigger a response.
Whether non-essential PoE loads can be disabled.
Whether the system restarts automatically after energy returns.
How devices are brought online without creating an excessive startup load.
Which spare parts must be carried to the site.
Who can safely work on each part of the installation.
How long travel and access may take in poor conditions.

Remote restart and managed PoE controls may resolve a locked device without a site visit. They cannot fix an undersized battery, damaged panel, failed cable or unavailable grid supply.

Model lifecycle costs without invented prices

A valid lifecycle comparison uses site-specific quotations and an agreed operating period. Avoid deciding solely from the price of the switch, solar panel or outdoor box.

Build the cost model from consistent categories:

Cost category	Solar PoE considerations	Grid-fed PoE considerations
Design	Load profile, solar resource, battery autonomy, structures	Supply route, electrical design, UPS objective
Equipment	PV, battery, mounting, controller, PoE and enclosure	Power feed, protection, UPS, PoE and enclosure
Installation	Foundations, mounting, local cabling and commissioning	Trenching, cabling, reinstatement and commissioning
Network backhaul	Fibre, wireless or local copper	Fibre, wireless or local copper
Scheduled maintenance	Panels, mounts, batteries and connections	UPS battery, protective equipment and connections
Fault response	Energy faults, battery replacement, storm damage	Supply faults, cable faults, UPS or switch failures
Expansion	Larger array, battery, controller or PoE capacity	Larger supply, UPS or PoE capacity
End-of-life work	Battery and equipment replacement or disposal	UPS battery and equipment replacement or disposal

A simple whole-of-life model is:

Total lifecycle cost = design + equipment + civil work + commissioning + scheduled maintenance + energy + replacement parts + expected fault response + end-of-life work

Use the same analysis period for both options. Include technician travel and site-access costs where they are material. A low-cost component that causes repeated remote visits may have a higher lifecycle cost than a more suitable architecture, but that conclusion must come from the project assumptions rather than a generic savings claim.

Account for expansion before installation

For solar PoE, additional devices may require more than an extra switch port. They can increase:

PoE demand
Daily energy use
Peak current
Required PV capacity
Battery capacity
Charging requirements

For grid-fed PoE, expansion may affect:

Incoming supply capacity
PoE budget
UPS load and backup time
Thermal conditions
Enclosure space
Surge and circuit protection

Document spare capacity in watts and watt-hours, not just spare ports. Eight physical PoE ports do not mean that every combination of eight devices can be powered simultaneously.

Select a solar, grid or hybrid architecture by evidence

Choose the architecture by testing the site evidence against clear acceptance criteria.

Solar PoE is likely to fit when

No suitable grid supply exists near the load.
Extending power would require substantial civil work.
The load is modest, measurable and reasonably stable.
Seasonal solar input can support the required daily energy and reserve.
The site has a suitable unshaded mounting area.
Battery inspection and eventual replacement can be planned.
Fibre or wireless can provide the required backhaul.
Monitoring can warn operators before stored energy becomes critical.

Solar becomes a weaker option when the load is large or highly variable, shading cannot be controlled, array space is limited, or the required autonomy would lead to an impractical battery and PV system.

Grid-fed outdoor PoE is likely to fit when

A suitable AC supply is already accessible.
Load growth or variable demand is expected.
The site requires power beyond what a practical local solar system can support.
UPS support can meet the defined outage objective.
The power route can be installed and maintained without disproportionate civil work.
Operators can monitor both the network and backup-power state.

Grid-fed PoE becomes less attractive when the power extension is long, difficult to protect, expensive to reinstate after damage, or dependent on an outage-prone upstream circuit without sufficient backup.

A hybrid architecture may fit when

A hybrid design can combine normal grid operation with stored backup, or use separately engineered renewable and alternative charging sources. It may be appropriate where the consequence of downtime is high and genuinely independent energy paths are feasible.

Hybrid does not automatically mean more reliable. Additional chargers, transfer controls, batteries and protection devices introduce more interfaces and potential failure modes. Confirm:

Source priority and transfer behaviour
Electrical isolation between sources
Battery charging compatibility
Maximum charge current
Low-voltage and over-voltage protection
Alarm handling
Restart behaviour
Maintenance responsibilities

Have appropriately qualified professionals confirm the applicable electrical, structural and site requirements for the final New Zealand installation.

Use a documented decision record

Before procurement, record the evidence for the selected architecture:

Verified average and peak load
Required PoE voltage and power per port
Required operating hours and outage tolerance
Solar design assumptions or available AC supply
Battery capacity and usable-energy assumptions
Network distances and media
Environmental conditions
Monitoring and alarm requirements
Maintenance and recovery arrangements
Expansion allowance
Lifecycle cost assumptions

This record makes it easier to identify why a later equipment change, such as a higher-power camera or radio, may require the power design to be reviewed.

Common mistakes to avoid

Comparing switch prices instead of complete installed systems
Sizing solar from average summer conditions rather than the design season
Treating battery nameplate capacity as fully usable energy
Confusing a PoE power budget with daily energy capacity
Assuming UPS-module power determines backup time
Selecting ports by connector count without checking voltage and PoE mode
Ignoring switch and conversion losses
Extending copper Ethernet beyond its designed channel without a suitable alternative
Assuming an SFP slot guarantees compatibility with any optical module
Adding future devices without recalculating battery, charging and PoE headroom
Installing telemetry without defining alarms and response actions
Treating solar and grid-fed products as equivalent because they have similar port counts

Practical conclusion

Solar PoE is often the stronger architecture for a remote New Zealand site where extending mains power is impractical and the load can be supported through the least favourable design period. Grid-fed outdoor PoE is usually simpler when a suitable supply is nearby and a correctly sized UPS can meet the outage objective. Hybrid power is justified only when its added resilience outweighs its greater design and maintenance complexity.

As a practical next step, compare the two linked Maxsol examples against your required port count, actual device load, network distance, available power, environmental exposure, backup objective and management requirements. Verify port allocation, battery compatibility, charging limits, optical components and recovery behaviour before finalising the design.
